Precision NTC Thermistor PVC Insulated Cable Tubular Pre-insulated Terminal

NTC Temperature Sensor is a detection element that feeds back the results to the system.

It is also called thermistor or probe. Its principle is the resistance decreases rapidly when the temperature rises. NTC(Negative Temperature CoeffiCient)refers to thermistor phenomenon and material with negative temperature coefficient, and the resistance decreases exponentially when the temperature rises. NTC Temperature sensors are widely used in household, automotive, industrial, medical and other industries.Generally speaking, temperature sensors are used in most electrical and electronic products that require temperature feedback.

DESCRIPTION

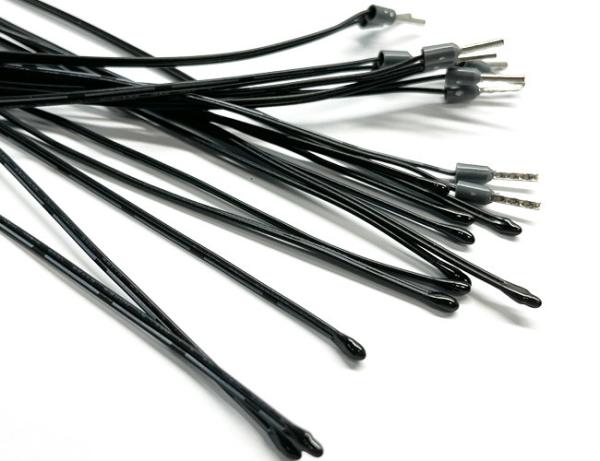

These sensors consist of small NTC chip soldered between stranded AWG #30, 105 °C resistant, PVC (UL2651).Terminations are solder dipped. They are lacquered and insulated with a black epoxy coating.

FEATURES

• High adhesive strength between the PVC wire and the encapsulating lacquer

• Accurate down to ± 0.3 °C

• High stability over a long life

• Small body of maxΦ3×10 mm for easy installation

APPLICATIONS

• Temperature measurement, Minsing, and control

• On battery packs, heat-sinks, tubing, enclosures, etc.

MARKING

Black lacquered body without additional mark

PACKAGING

The thermistors are packed in cardboard boxes; the smallest packing quantity is 100 units.

MOUNTING

By soldering the wire end, or crimping connector. The body can be inserted in a tube, free in air, tape attached or glued.Not intended for fluid immersed applications or continuous contact with water. Not for potting in hard material or over-molding applications.

DESIGN-IN SUPPORT

• Other R/T curves available on request

• The lead length can be customized

• Connectors can be added to the wire end

Specification Explain:

SJ MF 5A-5 -3470 -502 F

① ② ③ ④ ⑤ ⑥

① Minsing Co.,Ltd

② NTC thermistor

③ Epoxy coating type 5A-5 series

④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)

Specification:

□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%

B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ MF5A can be custom designed.

How to order?

1. The application of the NTC thermistor or temperature sensor:__________

2. The range of operation temperature:___°c to ___°c

3. The dimension and the drawing of the Thermistor

4. The R value:_____K ohm ±________% at _____°c,

5. The B value: (_____°c/____°c) = ______K ± _____%

6. Quantity demanded: _________ pcs

Hefei Minsing Automotive Electronic Co., Ltd. is Chinese leading NTC manufacturer, starting researching and developing thermal sensitive ceramic powder ,chipping , elements, and sensors from 1994 . After many years constant efforts , we now achieved mature chipping craft and mass scale production . The variety models of our precise thermistor elements used extensively in household electrical appliances , Auto. electronics , electrical instruments , telecom equipments , medical apparatus, industry meters and military devices .

In the new globalization age, basing on our improvement in chipping manufacturing craft , the increasing demands from global Auto. field , as well as our constant investment in different kinds of thermistor and sensor products , we are now providing products as well as technical supports to European major Auto. brands , to big global players of household electrical appliances , to famous American medical apparatus companies as well .

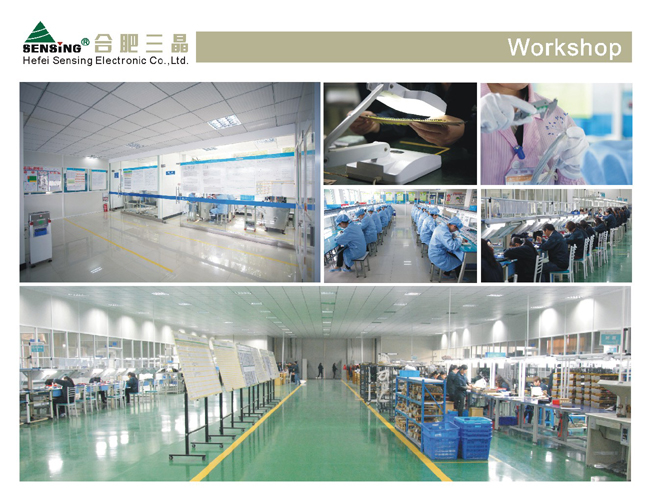

Minsing established self-owned production and researching base in 2004 . Locating at No.212 Xiangzhang Road of High & New Tech.Zone in Hefei ，Minsing now owns a provincial grade institute named Anhui Minsing Sensitive Components Institute , and a Joint Sensitive Material Lab collaborate with China most famous technical university USTC .
