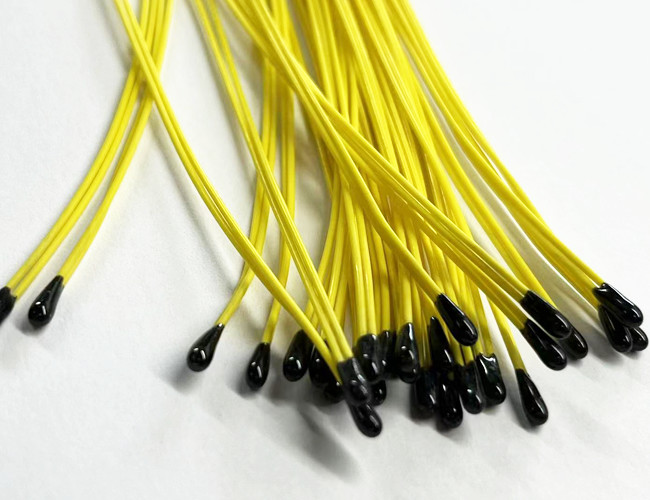

Miniature Precision NTC Sensor with Bendable Wire for Temperature Measurement

NTC thermistors have a wide range of applications. The medical industry relies on NTC thermistors in various applications such as catheters, dialysis equipment, and patient monitoring. Many household appliances such as dryers and coffee makers use NTC thermistors to accurately measure temperature. In the field of building control and process, HVAC and refrigeration equipment uses NTC sensors to measure temperature to improve efficiency and control levels. The automotive and aerospace industries use NTC thermistors for test, measurement, and production applications.

Applications

• Heating and air conditioning systems
• Industrial electronics
• Automotive electronics

Features

• Advanced NTC ceramic technology
• Fast response
• High measuring accuracy
• Different tolerances available
• Epoxy resin encapsulation
• Insulated leads of silver-plated copper wire AWG30
• Wide temperature range from -55 °C to +125 °C

Options
Alternative lead lengths on request

PACKAGING

The thermistors are packed in cardboard boxes; the smallest packing quantity is 200 units.

MARKING

The coated body has no markings

Specification Explain:

SJ MF 5A-5 -3470 -502 F

① ② ③ ④ ⑤ ⑥

① Minsing Co.,Ltd

② NTC thermistor

③ Epoxy coating type 5A-5 series

④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)

Specification:

□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%

B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ MF5A can be custom designed.
