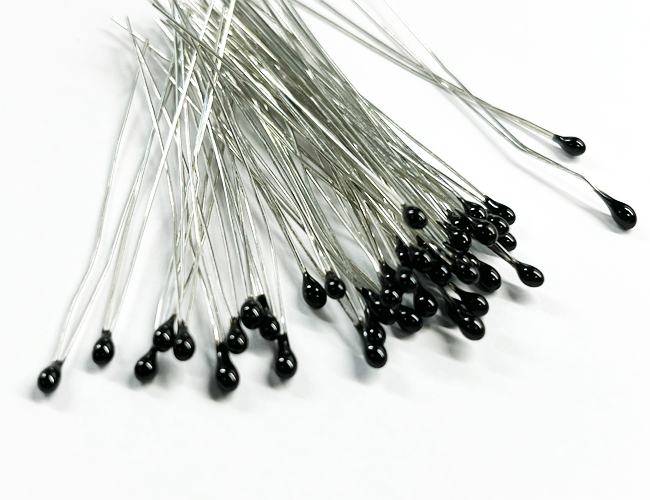

Pearl-Shaped Epoxy Thermistor with Alloy Lead Wire for Temperature Detection

The MF5A series is ethoxyline resin coated. The small size is made possible by new materials and manufacturing methods which provide the benefit of close tolerances and fast response.

With the advantage of high precision, fast response, reliable stability, it can be used in air-conditioner, heating apparatus, electric thermometer, liquid level sense, automobile electricity, etc.

Characteristics:

• Low Cost
• High Long Term Stability
• Point Matched Characteristics
• Very good endurance against thermal shock
• Industry Standard Resistance and Beta Values
• Operating temperature range: from -40°C to 125°C
• Available tolerances: +0.5%,+1%, +2%, +3%, and +5%

Applications:

• Temperature compensation in circuitry.
• Digital thermometer / Microwave therapeutic equipment
• Thermo control instruments and electronic washing equipment

Specification Explain:

SJ MF 5A-200 -3470 -502 F

① ② ③ ④ ⑤ ⑥

① Minsing Co.,Ltd

② NTC thermistor

③ Epoxy coating type 5A-200 series

④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)

□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%

B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ. MF5A can be custom designed.

FAQ:

Q: Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q: Can we have our logo or company name to be printed on your products or the package?

A: Yes, for container order, we have OEM packing service, you need to inform us your logo or company information in details. For bulk cargo, we will use neutral packing.

Q: What adventages do you have?

A: Fast delivery and good service,stable quality with competitive price,strict management system.

Hefei Minsing Automotive Electronic Co., Ltd. is Chinese leading NTC manufacturer, starting researching and developing thermal sensitive ceramic powder ,chipping , elements, and sensors from 1994 . After many years constant efforts , we now achieved mature chipping craft and mass scale production . The variety models of our precise thermistor elements used extensively in household electrical appliances , Auto. electronics , electrical instruments , telecom equipments , medical apparatus, industry meters and military devices .

In the new globalization age, basing on our improvement in chipping manufacturing craft , the increasing demands from global Auto. field , as well as our constant investment in different kinds of thermistor and sensor products , we are now providing products as well as technical supports to European major Auto. brands , to big global players of household electrical appliances , to famous American medical apparatus companies as well .

Minsing established self-owned production and researching base in 2004 . Locating at No.212 Xiangzhang Road of High & New Tech.Zone in Hefei ，Minsing now owns a provincial grade institute named Anhui Minsing Sensitive Components Institute , and a Joint Sensitive Material Lab collaborate with China most famous technical university USTC .

Minsing Commits to growth to Chinese most important temperature sensor production and researching base, making Minsing famous brand at home and abroad .
