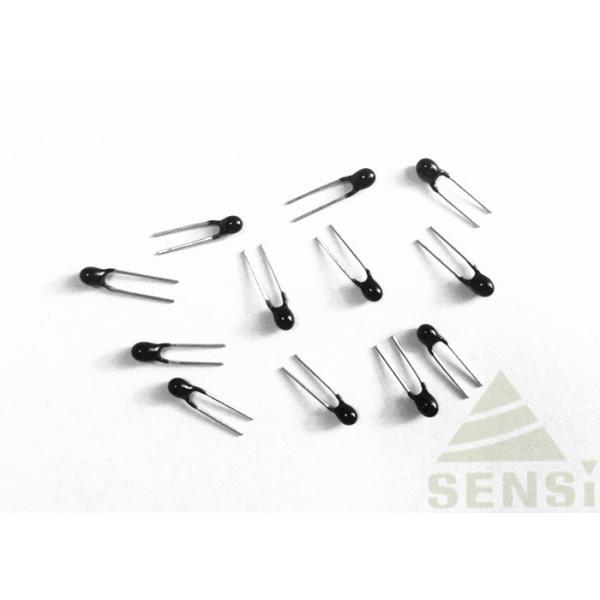

Epoxy Precision NTC Thermistor Manufacturer Leads Length Customizable for Temperature Measurement

Characteristics:

1. Small body diameter of max. 3.0 mm

2. Precise measurement in extreme environments.
3. Fast response time.
4. Ease of application and use

5. Engineered to withstand extreme temperatures -40 to + 150°C.

6. Greater engineering efficiency due to linear output.

Application:

Medical equipment and apparatus / Electronic thermometers / Instrumentation

Specification Explain:

SJ MF 5A-3 -3470 -502 F

① ② ③ ④ ⑤ ⑥

① Minsing Co.,Ltd

② NTC thermistor

③ Epoxy coating type 5A-3 series

④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)

Tell us your request:

1. The application of the NTC thermistor:__________

2. Working environment of NTC thermistor:________

3. Operation temperature range:___℃ to ___℃

4. Any requirement about sensor probe material or dimension:______________

5. The R value:___K ohm ±___% at ___℃,

6. The B value: B(____℃/____℃) = _____K ± ___%
