    Threaded Nickel Plated Brass Tube Temperature Sensor 50Kohm 3950 RoHS Compliant

    Ask Lasest Price
    Brand Name : Hefei Minsing
    Model Number : MFP-6
    Certification : REACH ,ROHS
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 6 Million Pieces Per Year
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

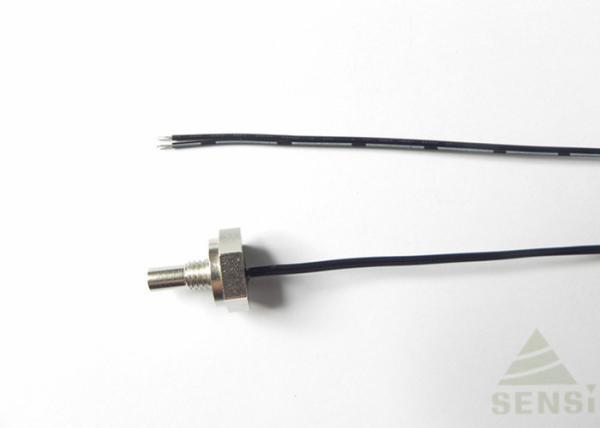

    Threaded Nickel Plated Brass Tube Temperature Sensor 50Kohm 3950 RoHS Compliant

    Threaded Nickel Plated Brass Tube , Temperature Sensor , RoHS Compliant , 50Kohm 3950 , For Coffee Maker


    Product Feature:

    Temperature sensor design and production

    Detected liquid measurement / Waterproof / Nice looking


    Application:

    Testing temperature in liquid tank or liquid pipe

    Soybean Milk Maker / Dish-washing Machine / Coffee Maker

    Liquid Cylinder / Electrical Heater


    Specification Explain:


    SJ MF P -6 -3950 -502 F

    ① ② ③ ④ ⑤ ⑥ ⑦


    ① Minsing Co.,Ltd

    ② NTC thermistor

    ③ Encapsulation probe

    P: Anomalous probe encapsulated

    ④ Anomalous probe types:

    1. Copper crimp type, 2. Surface testing type, 3 .Bullet type,

    4. Flange type, 5 .Cap shell type, 6. Screw thread type, 7. Clamp type

    ⑤ B value(B 25/50℃) Example: 3950:B 25/50℃: 3950

    ⑥ Standard resistance value at 25℃(R25℃):

    Example:502:R25℃ 5KΩ

    ⑦ R25℃ interchangeability precision:

    F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)


    Specification:

    SpecificationR25 (KΩ)B25/50 (K)Disspation constantThermal time constantOperating temp. range
    SJMF□-□280-301□0.32800


    ln still air 2.1~15mW/℃


    ln still air 25~65s


    -40~+150℃

    SJMF□-□338/350-202□23380/3500
    SJMF□-□327/338-502□53270/3380
    SJMF□-□327/338-103□103270/3380
    SJMF□-□347/395-103□103470/3950
    SJMF□-□395-203□203950
    SJMF□-□395/399-473□473950/3990
    SJMF□-□395/399-503□503950/3990
    SJMF□-□395/399-104□1003950/3990
    SJMF□-□420/425-204□2004200/4250
    SJMF□-□440-474□4704400
    SJMF□-□445/453-145□14004450/4530

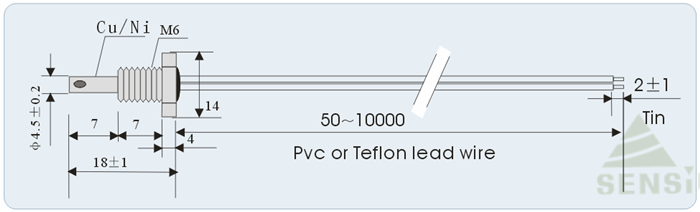

    The sizes above are for reference only. Different encapsulation and electrical parameter can be custom made as requirement.
