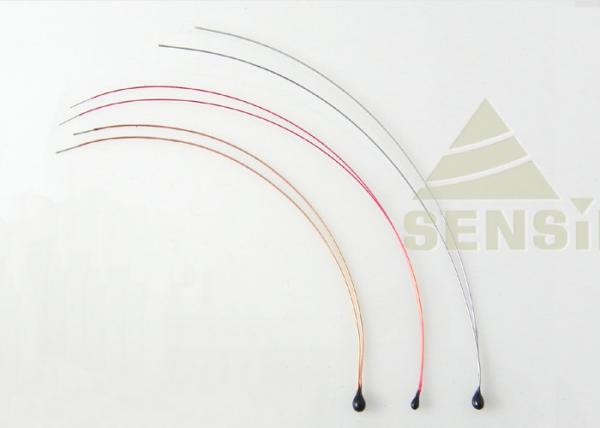

Good Quality of Coherence and Interchange , Precision NTC Thermistor , High Sensitivity , for Digital Thermometer

Features:

· Radial resin coated

· Small dimension

· Powerful in limiting inrush current

· Fast response

· Large material constant (B value)

· Low residue resistance

· Long life, high reliability

· Complete part, wide operation range

· Operating temperature -55°C~200°C

Product Feature:

Medical application precise / Varnished wire / Miniature sensor bead

Application:

Digital thermometer / Microwave therapeutic equipment

Thermo control instruments and electronic washing equipment

Specification Explain:

SJ MF 5A-4/ 5A-200 -3470 -502 F

① ② ③ ④ ⑤ ⑥

① Minsing Co.,Ltd

② NTC thermistor

③ Epoxy coating type 5A-4 / 5A-200 series

④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)

Specification:

□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%

B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ. MF5A can be custom designed.

Hefei Minsing Automotive Electronic Co., Ltd. is Chinese leading NTC manufacturer, starting researching and developing thermal sensitive ceramic powder ,chipping , elements, and sensors from 1994 . After many years constant efforts , we now achieved mature chipping craft and mass scale production . The variety models of our precise thermistor elements used extensively in household electrical appliances , Auto. electronics , electrical instruments , telecom equipments , medical apparatus, industry meters and military devices .

In the new globalization age, basing on our improvement in chipping manufacturing craft , the increasing demands from global Auto. field , as well as our constant investment in different kinds of thermistor and sensor products , we are now providing products as well as technical supports to European major Auto. brands , to big global players of household electrical appliances , to famous American medical apparatus companies as well .

Minsing established self-owned production and researching base in 2004 . Locating at No.212 Xiangzhang Road of High & New Tech.Zone in Hefei ，Minsing now owns a provincial grade institute named Anhui Minsing Sensitive Components Institute , and a Joint Sensitive Material Lab collaborate with China most famous technical university USTC .

Minsing Commits to growth to Chinese most important temperature sensor production and researching base, making Minsing famous brand at home and abroad .
