Excellent Thermal Cycle Endurance , Precision NTC Thermistor , Widely Used in Automobile Industry

Product Introduction

With strong R&D capabilities,advanced production equipment and perfect measurement devices,

we supply qualified products and service in accordance with ISO9001 quality management system.

All products have passed hazardous substance test,met standards of EU and USA.

And we are confident we can meet your OEM/ODM requirements.

Product Feature:

Custom size and wire configuration / Fast Response Time / Tight tolerance on resistance and Beta value

Application:

Assembly into probes / Liquid or gas temperature control and monitoring

Automotive (Air Conditioning, Cabin Climate Control/Management, External Temperature Monitoring,Heated Seats, Heated Steering Wheels, other)

Specification Explain:

SJ MF 5A-5 -3470 -502 F

① ② ③ ④ ⑤ ⑥

① Minsing Co.,Ltd

② NTC thermistor

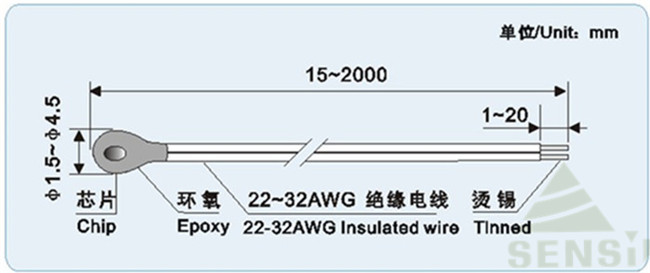

③ Epoxy coating type 5A-5 series

④ B value(B 25/50℃) Example: 3470:B 25/50℃: 3470

⑤ Standard resistance value at 25℃(R25℃):

Example:502:R25℃ 5KΩ,103:R25℃ 10KΩ ,104:R25℃ 100KΩ

⑥ R25℃ interchangeability precision:

F(±1%); G(±2%); H(±3%); J(±5%); K(±10%)

Specification:

□ R25℃ interchangeability precision , B value precision ±1% ±2% ±3% ±5%

B value among 3000-4500K,and R25℃ among 0.5KΩ-2000KΩ MF5A can be custom designed.

Hefei Minsing Automotive Electronic Co., Ltd. is Chinese leading NTC manufacturer, starting researching and developing thermal sensitive ceramic powder ,chipping , elements, and sensors from 1994 . After many years constant efforts , we now achieved mature chipping craft and mass scale production . The variety models of our precise thermistor elements used extensively in household electrical appliances , Auto. electronics , electrical instruments , telecom equipments , medical apparatus, industry meters and military devices .

In the new globalization age, basing on our improvement in chipping manufacturing craft , the increasing demands from global Auto. field , as well as our constant investment in different kinds of thermistor and sensor products , we are now providing products as well as technical supports to European major Auto. brands , to big global players of household electrical appliances , to famous American medical apparatus companies as well .

Minsing established self-owned production and researching base in 2004 . Locating at No.212 Xiangzhang Road of High & New Tech.Zone in Hefei ，Minsing now owns a provincial grade institute named Anhui Minsing Sensitive Components Institute , and a Joint Sensitive Material Lab collaborate with China most famous technical university USTC .

Minsing Commits to growth to Chinese most important temperature sensor production and researching base, making Minsing famous brand at home and abroad .
